Agilent 5977B GC/MSD System with Intuvo 9000 Gas Chromatograph and 7697A Headspace Sampler, innovative gas chromatography-mass spectrometry platform for environmental monitoring, food safety testing, pharmaceutical research, forensic toxicology, and industrial chemical analysis.
  • Agilent 5977B GC/MSD System with Intuvo 9000 Gas Chromatograph and 7697A Headspace Sampler, innovative gas chromatography-mass spectrometry platform for environmental monitoring, food safety testing, pharmaceutical research, forensic toxicology, and industrial chemical analysis.
  • Agilent 5977B GC/MSD System with Intuvo 9000 Gas Chromatograph and 7697A Headspace Sampler, innovative gas chromatography-mass spectrometry platform for environmental monitoring, food safety testing, pharmaceutical research, forensic toxicology, and industrial chemical analysis.

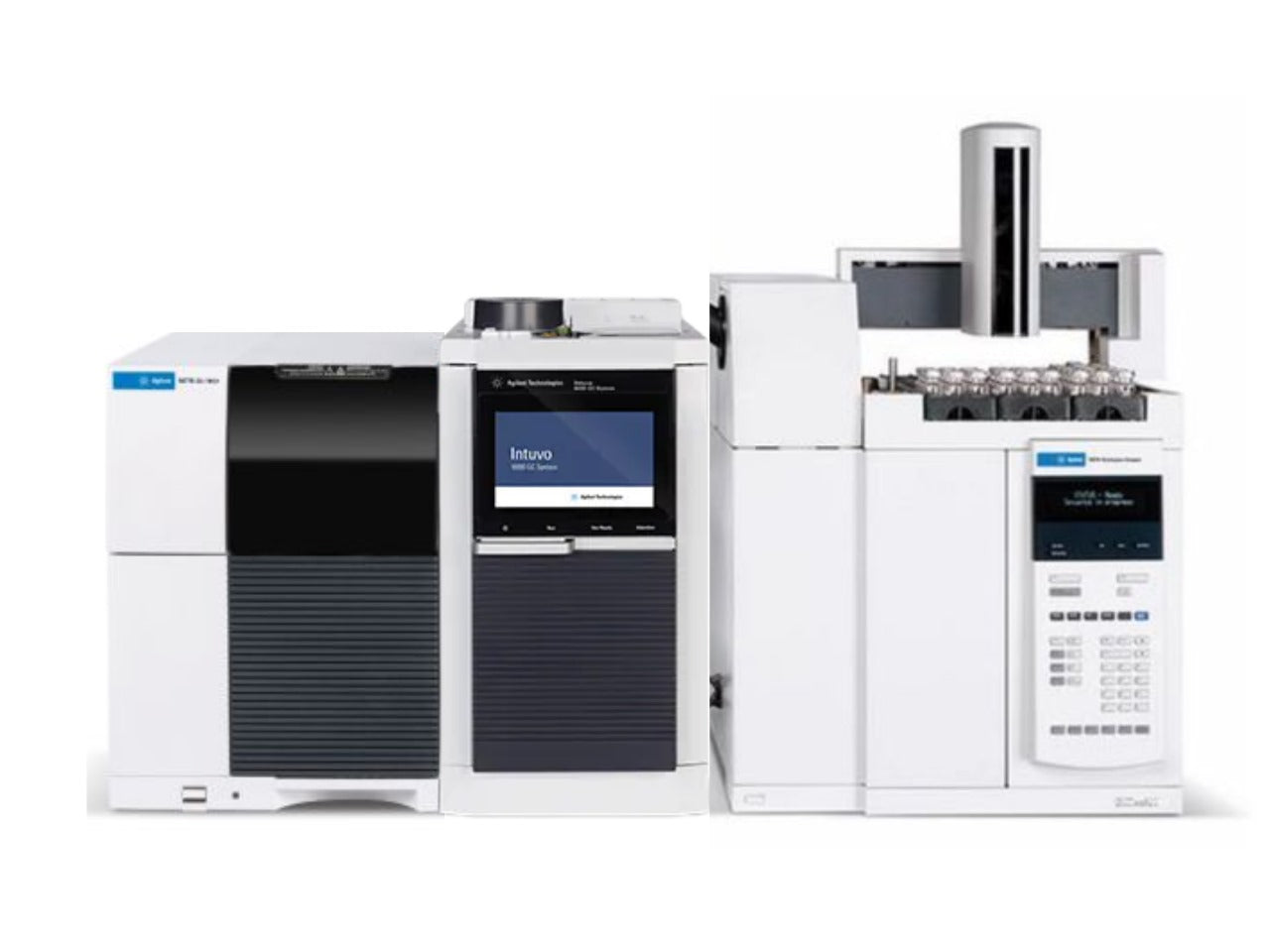

Agilent 5977B GC/MSD System with Intuvo 9000 GC and 7697A Headspace Sampler
$27,500.00

Key Features

  • Ultra-Compact Intuvo 9000 GC with High Throughput Design
    About 50% smaller footprint compared to conventional GC systems, with click-and-run column connections for quick swaps. Direct column heating accelerates cycle times and enhances reproducibility. Built-in diagnostic intelligence reduces downtime.

  • High-Sensitivity Detection with 5977B GC/MSD
    Equipped with a High-Efficiency Source (HES), JetClean self-cleaning, and triple-axis detector for femtogram-level sensitivity, fast scanning, and reduced maintenance.

  • Precision 7697A Headspace Sampler for Volatile Analysis
    Handles up to 111 vials with three priority positions. Includes automatic leak check, independent vial and head pressure control, barcode tracking, and multiple headspace extraction modes for enhanced sensitivity.

Applications

  • Pharmaceutical QC & Residual Solvents – Automated headspace workflows ensure compliance, reproducibility, and validation.

  • Environmental Monitoring & VOC Detection – Ultra-low detection limits for trace analysis in water, air, and soil.

  • Food, Flavor & Fragrance Profiling – Maintains sample integrity for aroma and flavor analysis.

  • Forensics & Chemical Industry – Compact and powerful system for high-throughput analytical labs.

Technical Specifications

Component Specifications
Intuvo 9000 GC • 50% smaller footprint
• Direct heating oven with up to 250 °C/min ramp rate
• Cooling: 450 → 50 °C in under 3 min
• Retention time repeatability: < 0.008% (< 0.0008 min)
• Area repeatability: < 1% RSD
• EPC with 0.001 psi precision; supports He, H₂, N₂, Ar/CH₄
• Built-in diagnostics, remote access, leak check
5977B GC/MSD • High-Efficiency Source (HES) with 1.5 fg IDL sensitivity
• JetClean self-cleaning ion source
• Triple-axis detector with low noise and high S/N
• Scan speed: up to 20,000 u/s
• Mass range: 1.6 – 1050 u
• Mass accuracy: ±0.005 u with autotune
7697A Headspace • 111-vial capacity (3 priority positions)
• Tray exchangeable during runs
• Area repeatability: < 1% RSD (tray), < 1.5% RSD (12-vial)
• Independent vial pressurization and head pressure controls
• Automatic leak check and barcode reader
• Supports 10, 20, and 22 mL vials
• Multiple headspace extraction (MHE, MHC) modes

Why This System Excels

  • Compact & Space-Saving – Ideal for labs with limited space.

  • Enhanced Sensitivity – Trace-level analysis with high reliability.

  • Versatile Headspace Sampling – Supports both routine and advanced workflows.

  • Compliance Ready – Automated checks and data integrity for regulated industries.
