Waters SYNAPT G2 MALDI Q-TOF Mass Spectrometer High-resolution MALDI-MS system with ion mobility for proteomics, imaging, and structural biology research
  • Waters SYNAPT G2 MALDI Q-TOF Mass Spectrometer High-resolution MALDI-MS system with ion mobility for proteomics, imaging, and structural biology research
  • Waters SYNAPT G2 MALDI Q-TOF Mass Spectrometer High-resolution MALDI-MS system with ion mobility for proteomics, imaging, and structural biology research

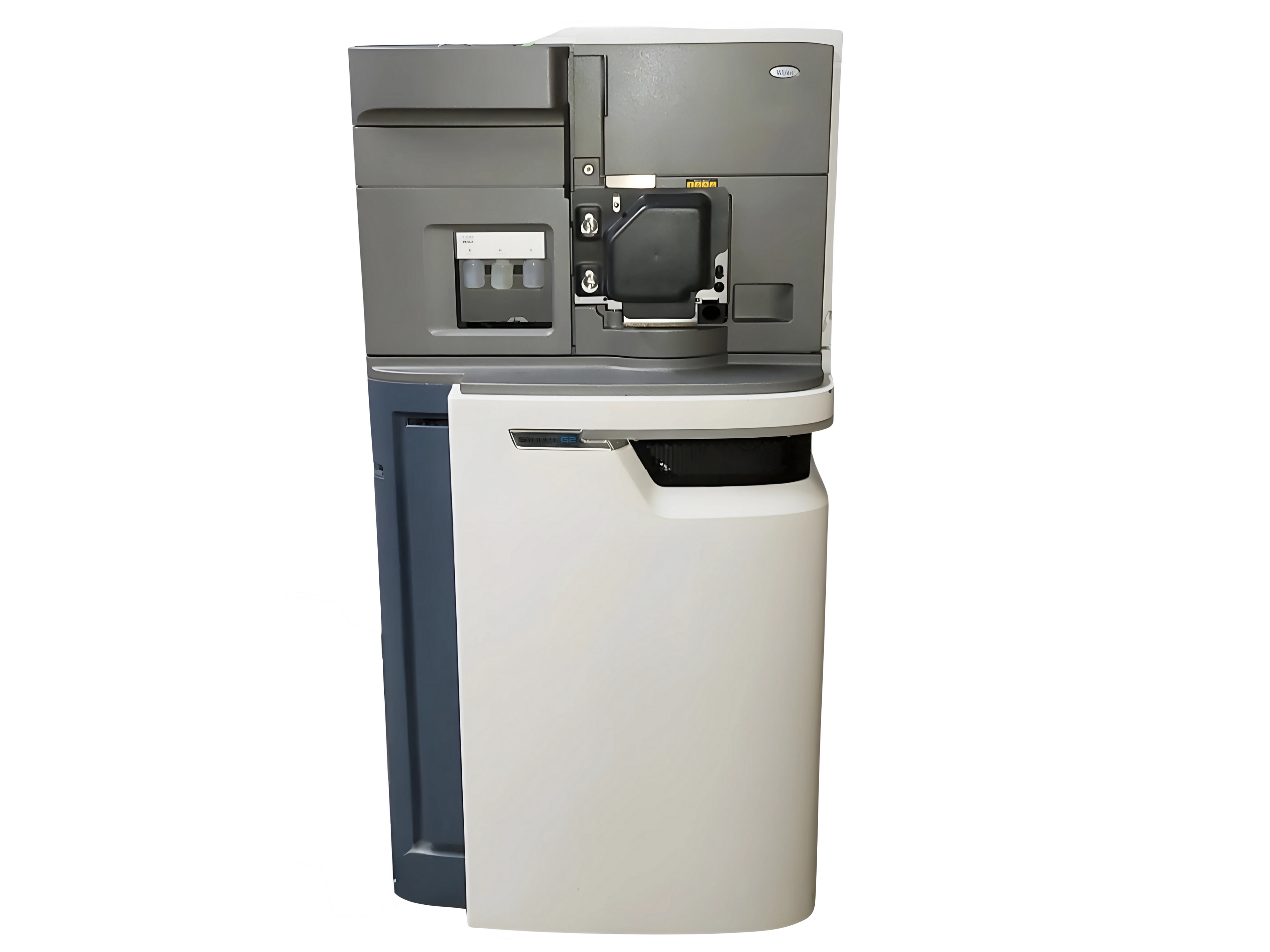

Waters SYNAPT G2 MALDI Q-TOF MS Ion Mobility Enabled MALDI Mass Spectrometry System
$0.00

  • Key Features:
    • Advanced MALDI Q-TOF platform integrating ion mobility separation (IMS) for enhanced molecular characterization
    • Combines high mass accuracy, high resolution, and orthogonal separation via ion mobility
    • Versatile ionization supporting both MALDI and optional ESI sources
    • High sensitivity detection of peptides, proteins, lipids, metabolites, and polymers
    • Ideal for imaging mass spectrometry (MALDI-MSI) with high spatial resolution
    • Enables structural biology studies with conformational and isomer separation using IMS
    • Powered by Waters MassLynx™ and Driftscope™ software for advanced data visualization

  • Applications:
    • Proteomics and advanced biomolecular research
    • Imaging mass spectrometry for tissue and biomarker studies
    • Structural biology including protein conformations and complexes
    • Lipidomics, metabolomics, and glycomics analysis
    • Polymer and material science applications
    • Drug discovery and biopharmaceutical development

  • Specifications:

    Specification Details
    MS Platform Waters SYNAPT G2
    MS System Type MALDI Q-TOF with Ion Mobility Separation (IMS)
    Ionization Source Matrix-Assisted Laser Desorption/Ionization (MALDI); optional ESI
    Mass Analyzer Quadrupole – Orthogonal Acceleration Time-of-Flight (oa-TOF)
    Ion Mobility TriWave™ Ion Mobility Separation technology
    Mass Resolution >20,000 FWHM (typical Q-TOF performance)
    Mass Accuracy <5 ppm with lock mass
    Polarity Modes Positive and negative ion modes
    Sensitivity High sensitivity for trace-level biomolecular detection
    Imaging Capability MALDI-MSI with high spatial resolution
    Software Waters MassLynx™, Driftscope™ for ion mobility data
    Compliance 21 CFR Part 11 compatible for regulated laboratories
