Agilent 1100 Series HPLC System with quaternary pump, autosampler, column oven, VWD, and RID detectors versatile modular HPLC solution for pharmaceutical, food, environmental, chemical, and clinical applications.
  • Agilent 1100 Series HPLC System with quaternary pump, autosampler, column oven, VWD, and RID detectors versatile modular HPLC solution for pharmaceutical, food, environmental, chemical, and clinical applications.
  • Agilent 1100 Series HPLC System with quaternary pump, autosampler, column oven, VWD, and RID detectors versatile modular HPLC solution for pharmaceutical, food, environmental, chemical, and clinical applications.

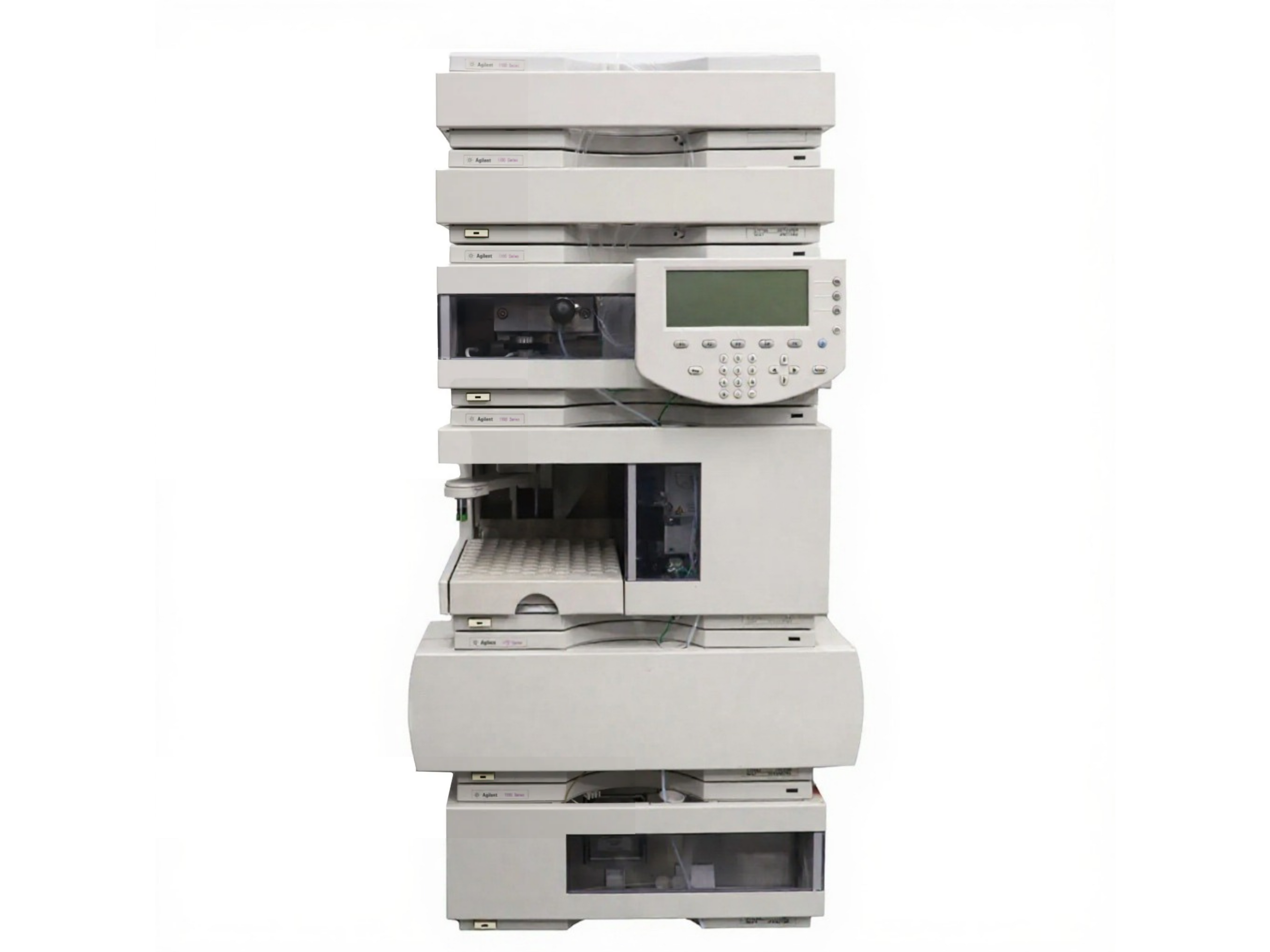

Agilent 1100 Series HPLC System with Quaternary Pump, Autosampler, Column Oven, VWD & RID Detectors
$0.00

  • Key Features:

    • Modular Agilent 1100 HPLC system configured with quaternary pump, autosampler, column oven, variable wavelength detector (VWD), and refractive index detector (RID).

    • Quaternary pump allows mixing of up to four solvents with isocratic or gradient elution, supporting flexible method development.

    • High-pressure mixing with vacuum degassing ensures stable baselines and reproducible chromatography.

    • Autosampler with precise programmable injection volumes and high sample capacity for unattended operation.

    • Column oven (thermostatted compartment) provides precise temperature control for reproducible retention times and improved chromatographic resolution.

    • Variable Wavelength Detector (VWD):

      • Selectable wavelength monitoring in the 190–600 nm range.

      • High sensitivity for analytes with UV absorbance, ideal for pharmaceuticals, organics, and biomolecules.

    • Refractive Index Detector (RID):

      • Universal detector for compounds lacking strong chromophores (e.g., sugars, polymers, alcohols, organic acids).

      • High-stability optical bench for accurate and reproducible measurements.

    • Supports a wide range of chromatographic modes: reversed-phase, normal-phase, ion-exchange, size-exclusion, and specialty columns.

    • Fully integrated with Agilent ChemStation software for system control, data processing, quantitation, reporting, and 21 CFR Part 11 compliance.

    • Reliable, rugged, and widely adopted for both research and regulated environments.

  • Applications:

    • Pharmaceutical & Biotech: Assay and impurity testing, drug stability studies, active pharmaceutical ingredient (API) analysis, formulation testing.

    • Food & Beverage: Sugars, organic acids, alcohols, additives, preservatives, sweeteners, and quality control testing.

    • Environmental Analysis: Pesticides, herbicides, and water-soluble pollutants not strongly UV-absorbing.

    • Chemical & Industrial: QA/QC of raw materials, specialty chemicals, surfactants, and polymers.

    • Clinical & Biomedical Research: Analysis of carbohydrates, nucleotides, and compounds with weak UV absorbance.

    • Academic & R&D Laboratories: Teaching, method development, and general-purpose chromatography research.

  • Specifications:

Parameter Specification
System Type High-Performance Liquid Chromatography (HPLC)
Pump Quaternary gradient pump, 4-solvent mixing
Flow Range Typically 0.001–10 mL/min
Pressure Range Up to 400 bar (quaternary pump)
Degasser Integrated vacuum degassing unit
Autosampler Injection range: 0.1–100 µL programmable, high sample tray capacity
Column Oven Thermostatted, 10–80°C (extendable with options)
Variable Wavelength Detector (VWD) Wavelength range: 190–600 nm, selectable single wavelength monitoring
Refractive Index Detector (RID) Universal detection, high-stability optics, suitable for non-UV analytes
Software Agilent ChemStation, OpenLab CDS
Compliance GLP/GMP, 21 CFR Part 11
