Key Features

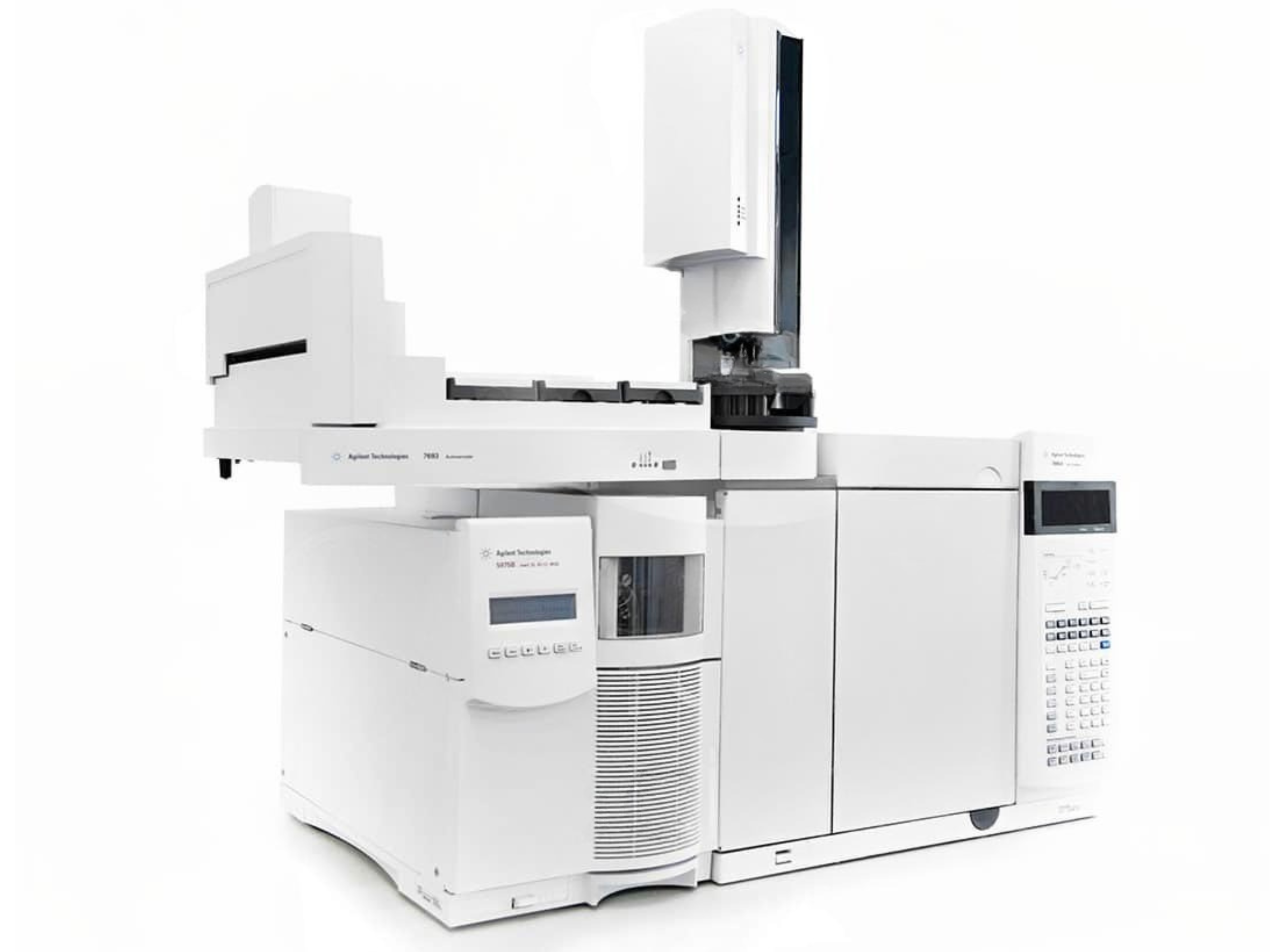

• 6890N Gas Chromatograph

  • High-precision gas control via Electronic Pneumatic Control (EPC), achieving retention time repeatability of <0.008% and area precision of <1% RSD.

  • Oven capable of fast and accurate temperature programming up to 450 °C with multi-ramp flexibility, suitable for a wide variety of sample types.

• 5975 Inert Performance Turbo MSD (Model G3172A)

  • Incorporates a performance turbo molecular pump, delivering enhanced vacuum efficiency and faster pump-down times.

  • Designed with an inert ion source and transfer path to ensure minimal analyte adsorption or degradation, enhancing sensitivity and reproducibility.

  • Supports both EI and CI modes (with optional AutoCI capability), and features extended mass range (up to 1050 m/z), synchronous SIM/Scan, and robust analytical performance.

  • Equipped with a local control panel for on-the-fly tuning and method execution, and a modular design for simplified maintenance.

• 7683B Automatic Liquid Sampler (ALS)

  • Automates sample injection with high consistency, allowing for high-throughput operation.

  • Supports tray-based injection modules for large-capacity workflows while reducing manual handling.

Applications

Optimized for advanced laboratory workflows such as:

• Environmental analysis (trace VOCs, semi-volatiles, pollutants)

• Food and beverage testing (contaminants, flavor profiling, pesticide residues)

• Pharmaceutical quality control (impurity profiling, residual solvent quantitation)

• Forensic and toxicological investigations (low-level volatile biomarkers)

• Academic and industrial research where ultra-high sensitivity and inert sample handling are required

Specifications
